Software – Analysis Software – Geo Source

Now with individual head models

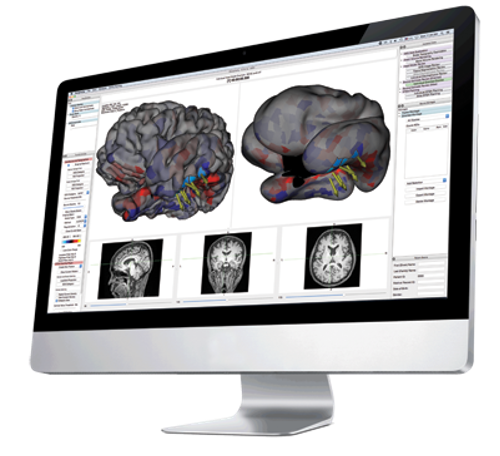

GeoSource 3 Research electrical source imaging method improves on current ESI methodology by using High Density EEG data and much more realistic head models to define the path of electrical current from the cortex to the scalp.

Higher resolution with High Density EEG data
To provide the best source imaging results, GeoSource 3 software uses High Density EEG data with up to 256 sensors and whole head coverage.

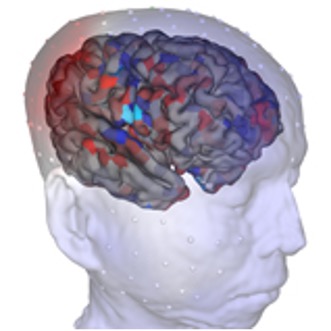

More realistic head models with 7 different tissue types
Automated software characterizes tissue types — scalp, skull, cerebrospinal fluid, grey matter, white matter, air, and eyeballs — directly from 1-mm MRI data for the most realistic anatomy across the entire head.

More realistic electrical conductivity modeling
using the Finite Difference Method (FDM)

The FDM performs voxel-by-voxel calculations of the electric potentials, maintaining the high resolution geometry of the original MRI image.

Fast and easy step-by-step head model building
A dedicated pipeline software guides you through each step with opportunities to review the model at all stages of construction.

The FDM software is optimized for high-performance computing and is performed using a remote high-performance GPU compute node so that computing time is accelerated from days to minutes. Cloud based computation is included with the purchase of the intermediate and advanced package.

Sensor Registration for higher accuracy
Conformal and individual head models incorporate EEG sensor location to define the path of electrical current from the cortex to the scalp, a critical component for the most accurate source estimation.

Use the Geodesic Photogrammetry System with sensor digitization from whole-head photographs or the GeoScan Sensor Digitization Device for real-time digitization using an optical scanner.

Choose from three different packages,
depending on your research needs.

All packages include

• LORETA, sLORETA, and LAURA source estimation algorithms
• FDM head models built from 1-mm resolution
  MRI data

Build individual head models with GeoSource 3 Research ADVANCED Package
Import MRI scans to build individual head models for the most realistic brain anatomy.

No individual MRI data?

Use atlas head models included in the BASIC package
Includes built-in age and gender specific head models —
1 infant, 2 pediatric, and 3 adult

Build individualized atlas head models with the INTERMEDIATE package
Use digitized sensor positions to conform/warp an atlas head model to individual head geometry (requires sensor digitization device).

GeoSource 3 Research software is seamlessly integrated with EGI’s  , for fully informed dense array neuromodulation protocols.

*Requires the Geodesic Photogrammetry System or the GeoScan Sensor Digitization Device.

Related products

Geodesic EEG System™ (GES) 400 – for High Density EEG acquisition, review, and analysis using Net Station 5 software.

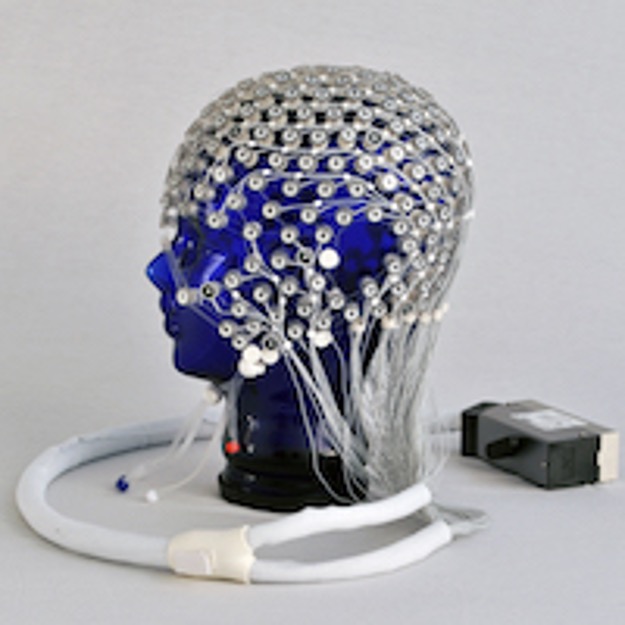

Geodesic Sensor Nets –  Fast-application electrode nets with 32, 64, 128, or 256 channels for whole head, High Density EEG
